Series · A Series PA Casters
A Series PA Casters 4 in Rigid CasterSN-A-PA-100-R-NB-TP
- Wheel
- 100 mm
- Load
- 450 kg
- Height
- 140 mm
Nylon · Top plate · Without brake
E Series TPR Casters series

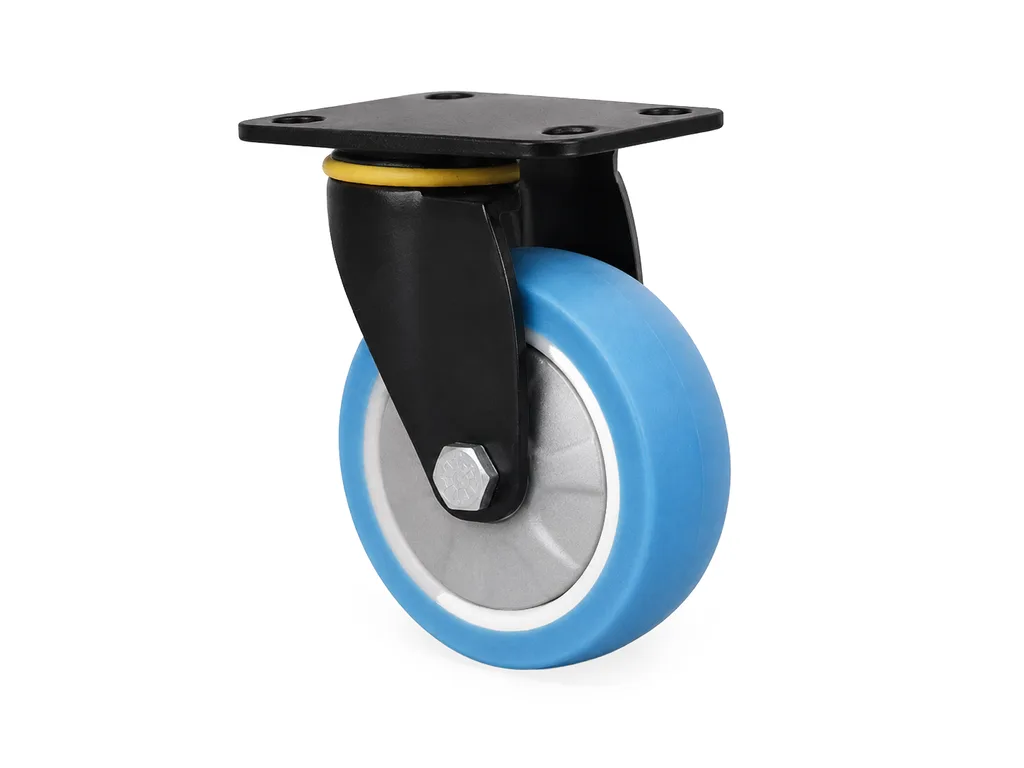

E Series TPR Casters 3 in Swivel Caster
SN-E-TPR-075-S-NB-TP
Content unavailable. Content unavailable
- Wheel diameter
- 75 mm
- Load capacity
- 100 kg
- Mounting height
- 102 mm
No checkout or online payment. Adding this SKU creates a local inquiry shortlist for a project quote.
Technical specification
Configuration data
| SKU | SN-E-TPR-075-S-NB-TP |
|---|---|
| Caster structure | Swivel |
| Wheel diameter | 75 mm |
| Wheel width | 32 mm |
| Load capacity | 100 kg |
| Mounting height | 102 mm |
| Mounting type | Top plate |
| Plate size | — |
| Wheel material | TPR |
| Bracket material | Zinc-plated steel |
| Bearing | Ball bearing |
| Brake status | Without brake |
| Brake type | Not applicable |
| Temperature range | -35 to 90 °C |
Prototype data for UX validation. Final values require engineering approval.
Performance profile
Application-oriented ratings
Rolling resistance0/5
Low noise0/5
Floor protection0/5
Corrosion resistance0/5
Series advantages
Suitable applications
Where this configuration fits
Suitability depends on dynamic load, shocks, operating speed, floor transitions, temperature and exposure. Confirm the full duty cycle in your inquiry.
Technical resources
Downloads
Same series
Compare E Series TPR Casters variants
Related products
Alternative series for this category
Series · B Series PU Casters
B Series PU Casters 4 in Rigid CasterSN-B-PU-100-R-NB-TP
- Wheel
- 100 mm
- Load
- 350 kg
- Height
- 140 mm
Polyurethane · Top plate · Without brake
Series · C Series PU Casters
C Series PU Casters 4 in Rigid CasterSN-C-PU-100-R-NB-TP
- Wheel
- 100 mm
- Load
- 350 kg
- Height
- 140 mm
Polyurethane · Top plate · Without brake
Need a modified configuration?
