B Series PU Casters series

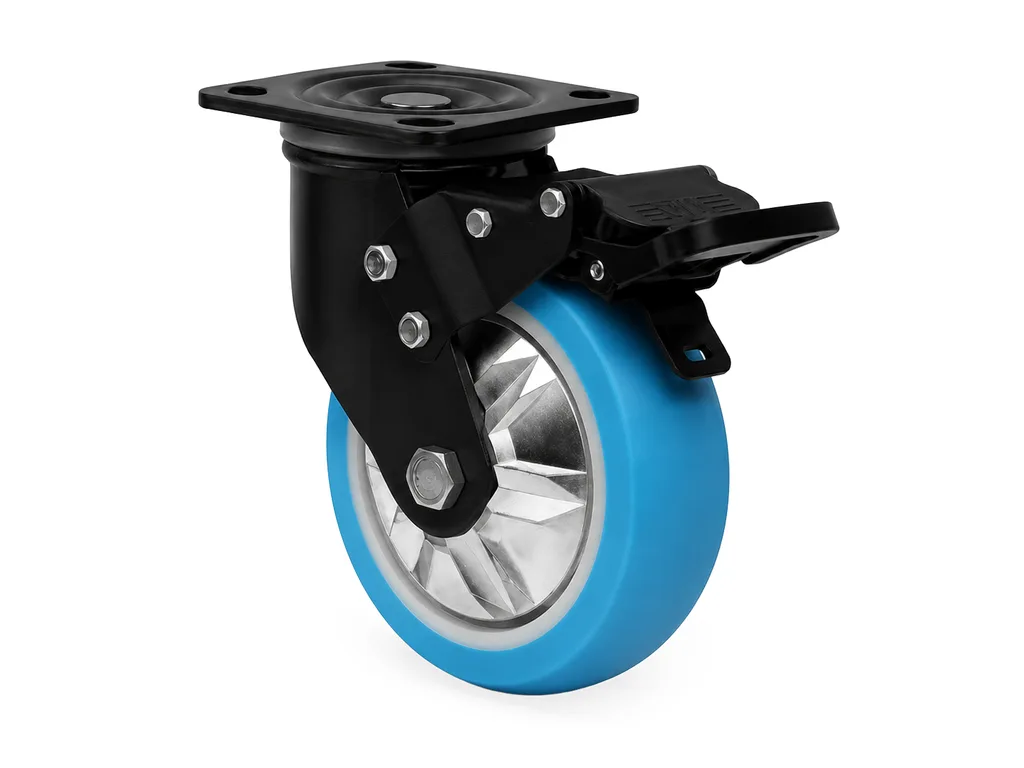

B Series PU Casters 6 in Swivel Caster with Total Lock
SN-B-PU-150-S-TL-TP
Content unavailable. Content unavailable
- Wheel diameter
- 150 mm
- Load capacity
- 450 kg
- Mounting height
- 190 mm
No checkout or online payment. Adding this SKU creates a local inquiry shortlist for a project quote.

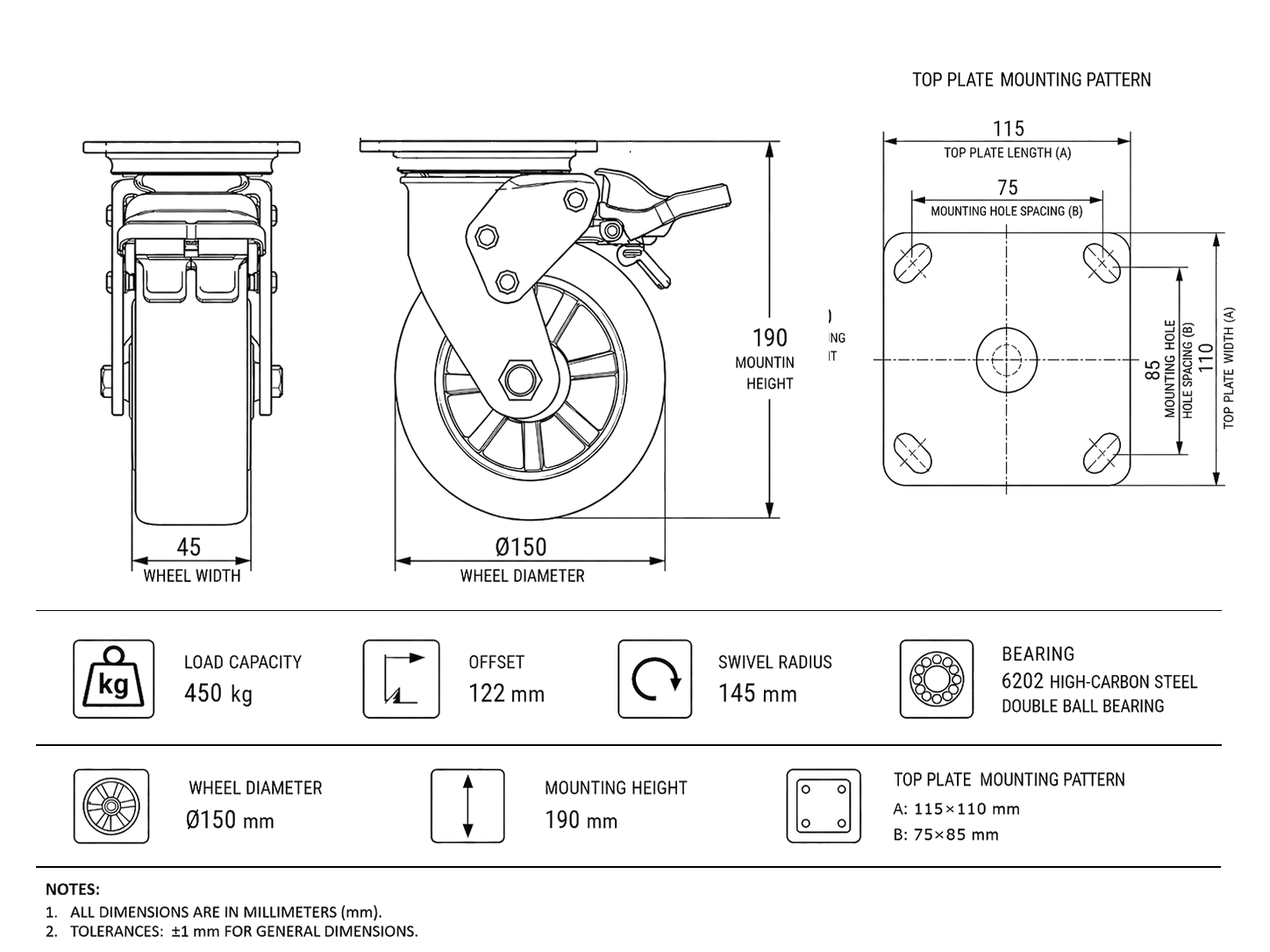

Technical specification
Configuration data
| SKU | SN-B-PU-150-S-TL-TP |
|---|---|
| Caster structure | Swivel |
| Wheel diameter | 150 mm |
| Wheel width | 45 mm |
| Load capacity | 450 kg |
| Mounting height | 190 mm |

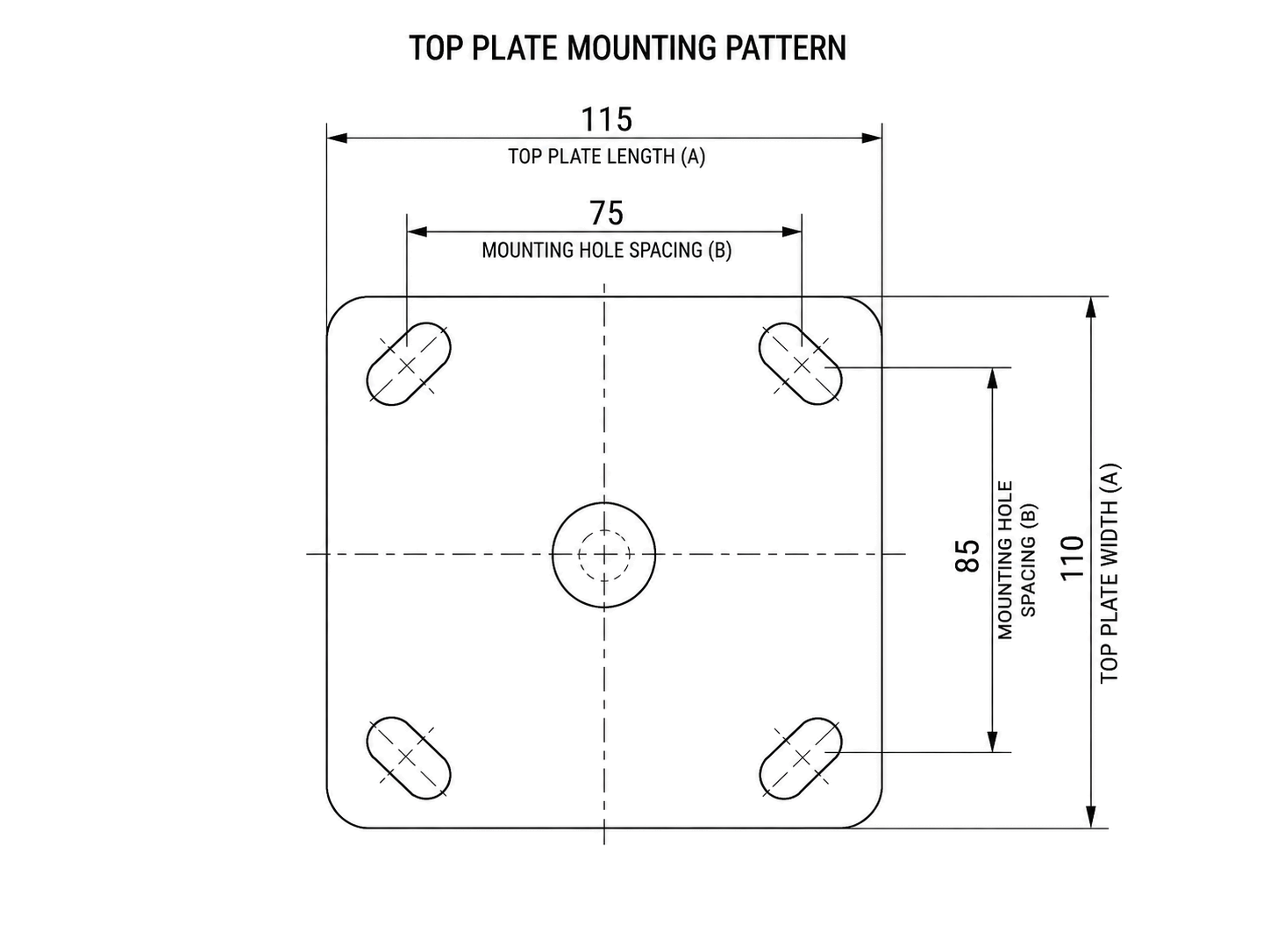

| Mounting type | Top plate |
| Plate size | — |
| Wheel material | Polyurethane |
| Bracket material | Zinc-plated steel |
| Bearing | Ball bearing |
| Brake status | With brake |
| Brake type | Total lock |
| Temperature range | -35 to 90 °C |
Prototype data for UX validation. Final values require engineering approval.
Performance profile
Application-oriented ratings
Rolling resistance0/5
Low noise0/5
Floor protection0/5
Corrosion resistance0/5
Series advantages
Suitable applications
Where this configuration fits
Suitability depends on dynamic load, shocks, operating speed, floor transitions, temperature and exposure. Confirm the full duty cycle in your inquiry.
