A Series PA Casters series

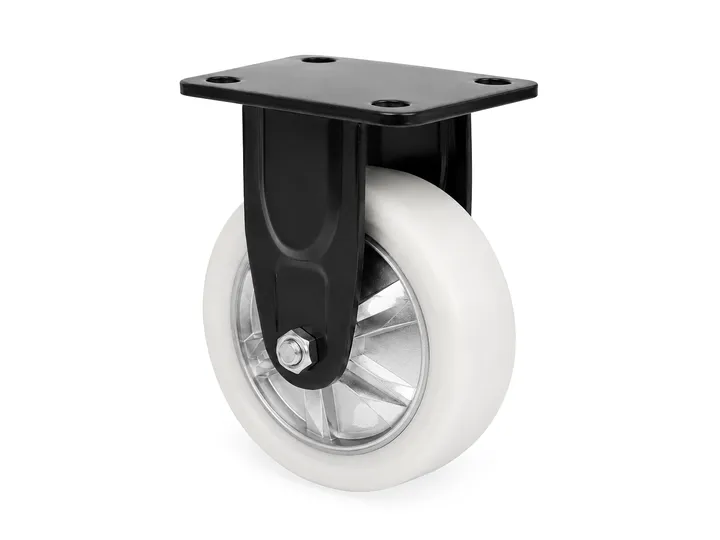

A Series PA Casters 5 in Rigid Caster
SN-A-PA-125-R-NB-TP
Content unavailable. Content unavailable
- Wheel diameter
- 125 mm
- Load capacity
- 550 kg
- Mounting height
- 160 mm
No checkout or online payment. Adding this SKU creates a local inquiry shortlist for a project quote.

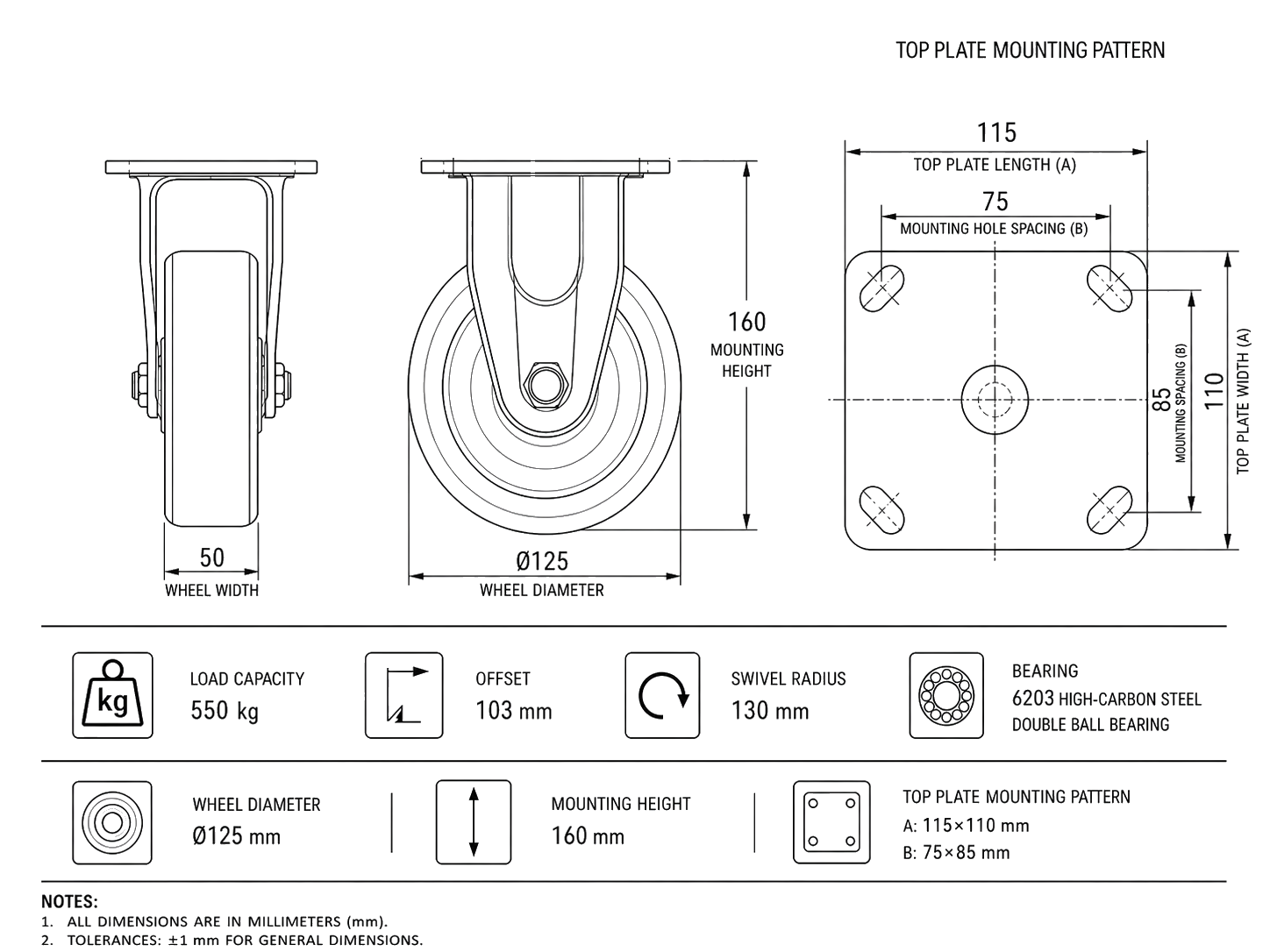

Technical specification
Configuration data
| SKU | SN-A-PA-125-R-NB-TP |
|---|---|
| Caster structure | Rigid |
| Wheel diameter | 125 mm |
| Wheel width | 50 mm |
| Load capacity | 550 kg |
| Mounting height | 160 mm |

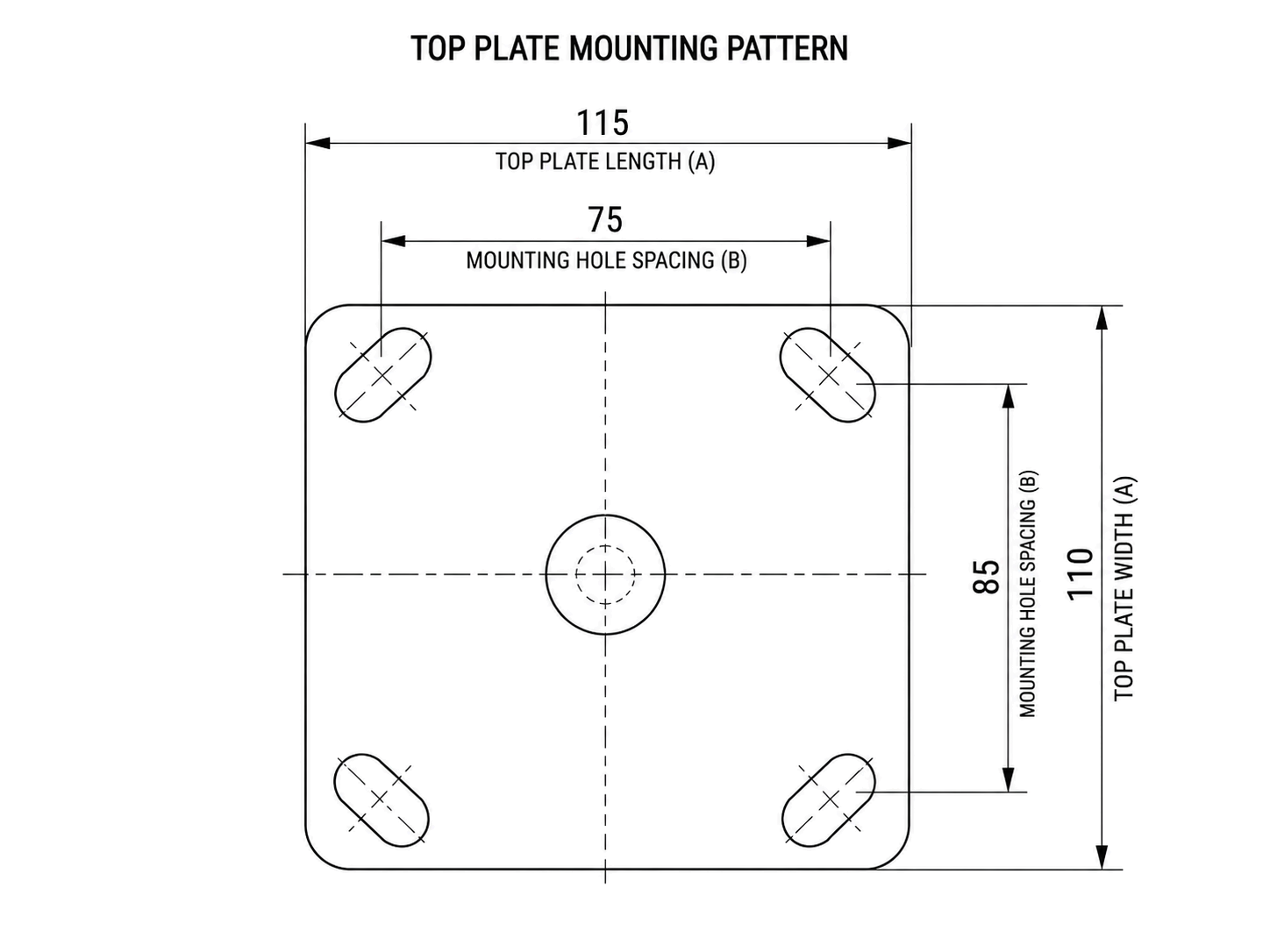

| Mounting type | Top plate |
| Plate size | — |
| Wheel material | Nylon |
| Bracket material | Zinc-plated steel |
| Bearing | Ball bearing |
| Brake status | Without brake |
| Brake type | Not applicable |
| Temperature range | -20 to 80 °C |
Prototype data for UX validation. Final values require engineering approval.
Performance profile
Application-oriented ratings
Rolling resistance5/5
Low noise5/5
Floor protection4/5
Corrosion resistance5/5
Series advantages
Suitable applications
Where this configuration fits
Suitability depends on dynamic load, shocks, operating speed, floor transitions, temperature and exposure. Confirm the full duty cycle in your inquiry.
